Derek92994's 700 Ser II White Oak conversion

[Gepetto]

It would be better if you used VR1 and VR2 rather than left and right so we can be sure we are tying it to the schematic.

I am suspecting VR1 to have the bogus voltages but that needs to be confirmed by Darcy



[laatsch55]

Ok, thanks Joe..



[derek92994]

It would be better if you used VR1 and VR2 rather than left and right so we can be sure we are tying it to the schematic.

I am suspecting VR1 to have the bogus voltages but that needs to be confirmed by Darcy

VR1:
C pin: 20.2 (the relays engaged for 2 power ups just now, previously this voltage was 7.6)
C pin 2nd test: relays did not engage, you get 7.6 volts when this happens, meters peg 30 seconds after power down then go down slowly
A pin: 0v
R pin: 2.5v

VR2:
C pin: 0v
A pin: -20.5
R pin: -17.9



[derek92994]

Also caps discharge themselves quite fast, down to 1 or 2 volts within 30-60 seconds when the relays do not engage.



[derek92994]

Thanks for your advice Joe, cheers



[derek92994]

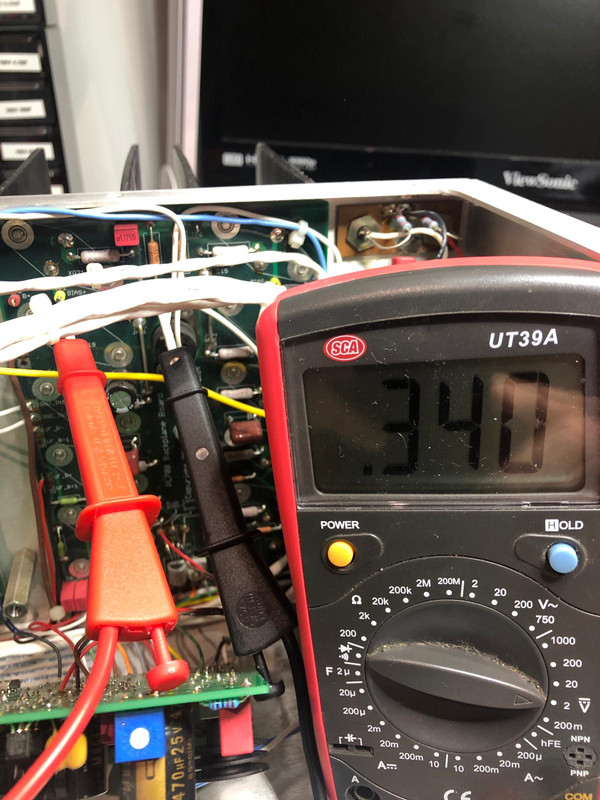

Bias Checks ok



[laatsch55]

Not bad for ...what ....6 years?



[derek92994]

Not bad for ...what ....6 years?

Its been the Perfect Amp



[laatsch55]

6-1/2 years



[derek92994]

Maybe the fans picked up a small particle of metal and threw it inside the amp?



[laatsch55]

I like your mini-grabbers Darc!



[laatsch55]

Maybe the fans picked up a small particle of metal and threw it inside the amp?

No, doubt it...



[derek92994]

I like your mini-grabbers Darc!

Parrot Clips, they don't Chirp Though



[derek92994]



[laatsch55]

Cool stuff down under....



[derek92994]

Cool stuff down under....

I will send you a couple of sets, one for you and Joe



[derek92994]

1230pm, 36 Degrees Celcius, looks like we may be in for a storm this afternoon.



[laatsch55]

I'm good on mini-grabbers Darc, Pomona's....pretty good stuff too...



[derek92994]

I'm good on mini-grabbers Darc, Pomona's....pretty good stuff too...

Show me what they look like, curious.



[laatsch55]

Here ya go...
