WOPL 700 series II build

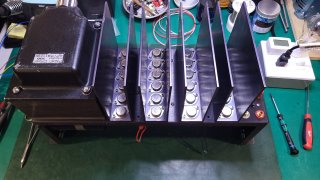

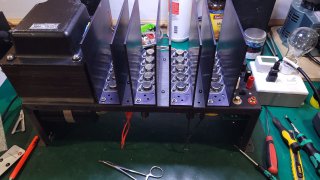

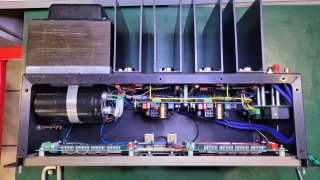

Got the 5th row transistors installed with no issues.

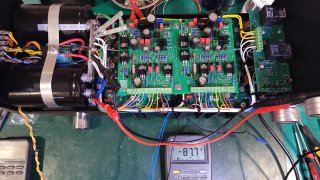

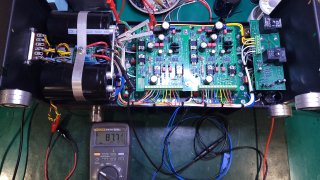

No shorts from DC ground or B+/B- rails No shorts transistor cans to chassis,

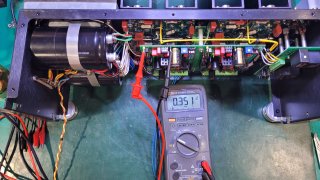

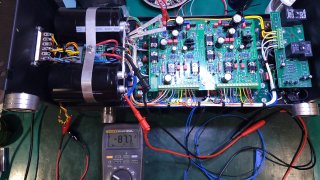

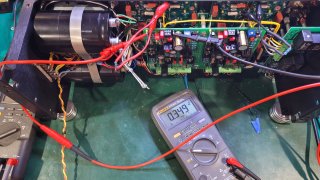

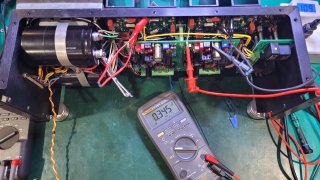

No blown fuses, no smoke, or smells Proper voltage, 0v at the output, checked bias about the same
Thanks for looking.........


Voltages....

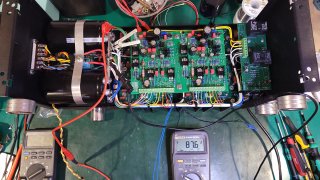

Bias readings....

Right Channel
Left channel

VSAT88 said:
Shit man you're pictures are great! Here is one I took of a Neon Psalm Tree I just found and repaired. Bet it's not as good as yours though HA!
View attachment 88836
Click to expand...


So you know what a GLG is but I DON'T know what a "Psalm Tree" is....... Do you get eternal life if you drink a coconut??? :)

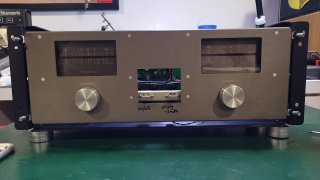

That's when the trouble started...........

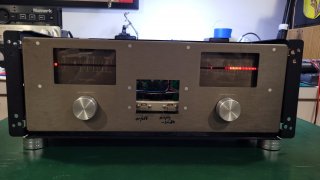

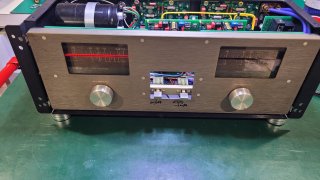

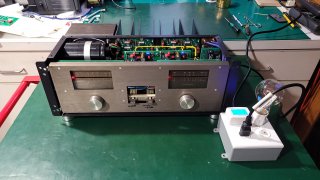

I was bringing it up slow on the variac and DBT, Around 45v the meters lit up looking like this........

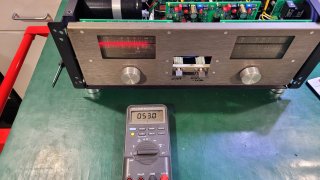

Meter switch set on Dot....

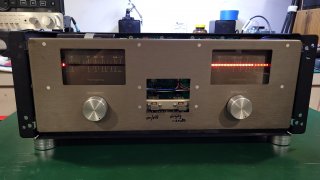

Meter switch set on Bar...

Since all the test were good after installing last row of transistors, I figured it had to be in the front panel wiring. Rechecked all the wiring it was right. So I swapped boards and sure enough, moved to the right channel.... I looked the board over and no missed or bad solder joints I could tell. Maybe a bad component ? Has this ever happened before? Any suggestions?

Meter switch set on Dot...
Meter switch set on Bar...

You placed IC1 backwards on that meter board, Pin 1 should face to the Left:



That board lay out is beautiful.. A great way to start my day. Looking at one of Joe's boards and a hell of a nice solder job!

laatsch55 said:
Maybr its little IC said see ya!!
Click to expand...
Yes Sir, That's exactly what it was....Good call Lee.

Hexis22 said:
You placed IC1 backwards on that meter board, Pin 1 should face to the Left:


Click to expand...
Yes Sir, I sure did. Good catch... It was had to see with that picture so dark. I removed it last night and broke one of the pins trying to straighten it out. Those Ic's are a bugger to remove. (At least for me). So I took one of the boards out of my 400... So I'm back in business. I still need to set the meters today.

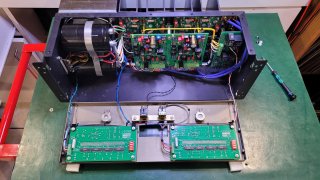

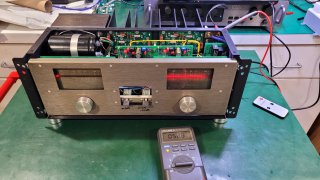

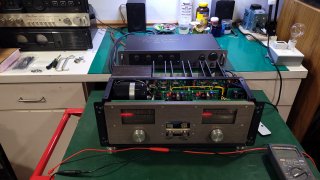

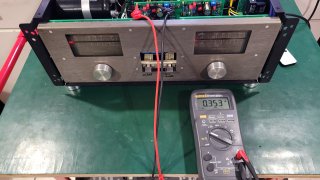

After the board swap....

Dnspy007 said:
Yes Sir, That's exactly what it was....Good call Lee.


Yes Sir, I sure did. Good catch... It was had to see with that picture so dark. I removed it last night and broke one of the pins trying to straighten it out. Those Ic's are a bugger to remove. (At least for me). So I took one of the boards out of my 400... So I'm back in business. I still need to set the meters today.

After the board swap....
View attachment 89135
Click to expand...
Doug, the board is much more valuable than the IC. Unless it is a one of a kind IC, you always sacrifice the IC by cutting all 14 legs off at the body of the IC. After you do that, removal of the individual pins is a piece of cake.

FWIW, on small chips like that I have very good luck pulling them intact with a vacuum solder remover on my rework station . . . Depends if you need to save the chip or not . . . (and what tools you have).
