WOPL Sniffer
Veteran and General Yakker
And a "True KLH" means what?? KLH wasn't ALL that great.
WOPL Sniffer
Veteran and General Yakker
When they compare KLH to Bose, time to start shopping.................
How bad is KLH? - Home Theater Forum
Jan 10, 2006 · KLH is very cheap stuff, but that said it's solid value. IMO, the value is far superior with KLH compared to say BoseThere's a Pioneer C 5600D for sale locally for $125 with speakers.
KLH was budget conscious but in the segment of All in ones, they're probably not too terrible! I'm not sure how the Sony HP 601 and the Pio stack up against the KLH Model 20. Pioneer and Sony seem to have a better TT for sure given the force adjustments on them..
KLH was budget conscious but in the segment of All in ones, they're probably not too terrible! I'm not sure how the Sony HP 601 and the Pio stack up against the KLH Model 20. Pioneer and Sony seem to have a better TT for sure given the force adjustments on them..
Bob Boyer
Veteran and General Yakker
Didn't know that one existed. Looking at an example on the 'bay right now. For $125, get that one for sure. Hell, the turntable alone probably brings $400 right now if you put it on its own plinth.
Some more intel on this model. It looks to be a watered down Model 20 in certain ways..

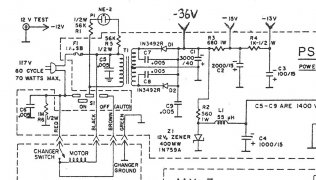

Model 20 has a better PS because it has a class AB amp that can drive a 4ohm speaker (KLH model 20 speaker) as opposed to the 717 which has a basic amp probably is at the max 5 watts.
Model 20 has a bigger transformer and PS caps.
Model 20 uses separate tuning gang caps for AM and FM as opposed to the 717.
Model 20 and 717 use the same Garrard 3000 with adjustable counterweight but the 20 is a 4 speed. Both use the same 4 pole motor.(Probably not much different in this aspect)
Both the tables rest on a spring platform..
The 20 is shielded better...
Model 20 has a better PS because it has a class AB amp that can drive a 4ohm speaker (KLH model 20 speaker) as opposed to the 717 which has a basic amp probably is at the max 5 watts.
Model 20 has a bigger transformer and PS caps.
Model 20 uses separate tuning gang caps for AM and FM as opposed to the 717.
Model 20 and 717 use the same Garrard 3000 with adjustable counterweight but the 20 is a 4 speed. Both use the same 4 pole motor.(Probably not much different in this aspect)
Both the tables rest on a spring platform..
The 20 is shielded better...
Attachments

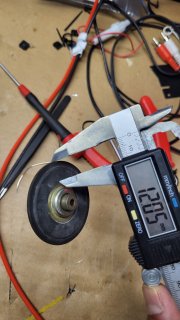

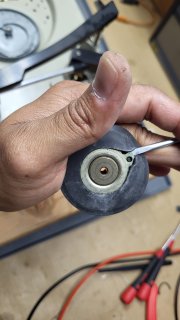

Idler is a weird one..and went rock hard.

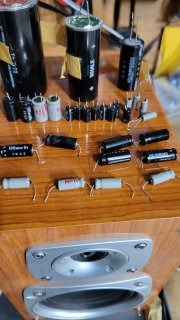

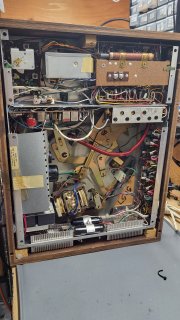

Platter weighs a good bit, everything is well made on the Twenty. Even the coupling caps are also massive..1500uF (the two massive caps bolted on the bottom of the chasis in one of the above pics, seems to be polycaps of some type)
Platter weighs a good bit, everything is well made on the Twenty. Even the coupling caps are also massive..1500uF (the two massive caps bolted on the bottom of the chasis in one of the above pics, seems to be polycaps of some type)
